Rogue Fitness Rogue Wall Mount Swiss Brackets

Rogue Wall Mount Swiss Brackets – Medball Storage

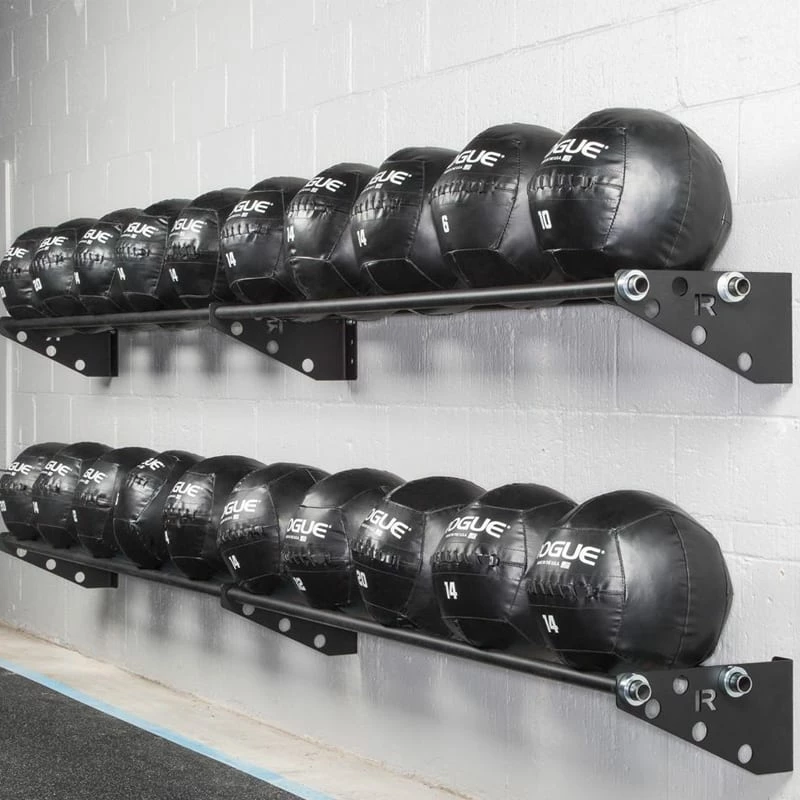

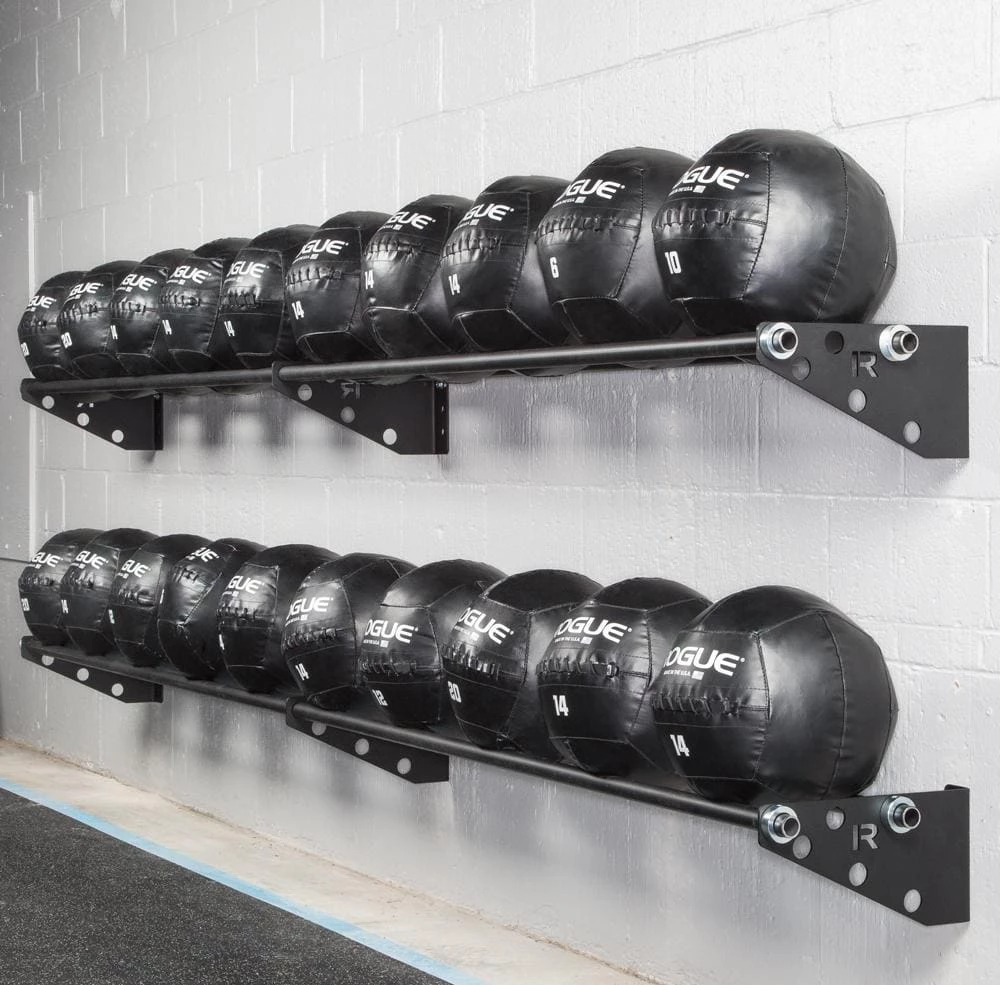

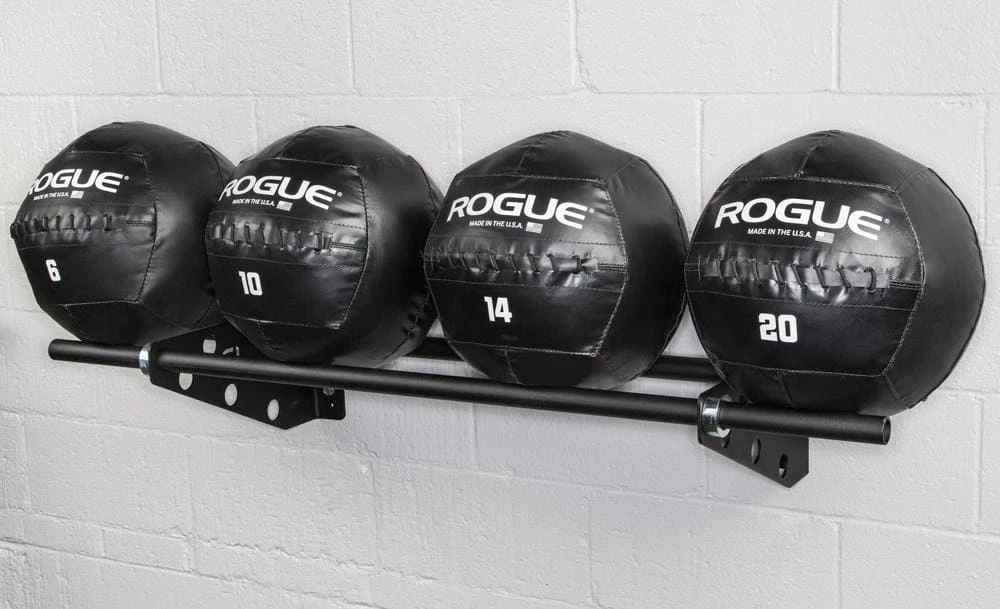

For any gym with more than a few medicine balls and less than enough storage space, Rogue Swiss Brackets are the zero footprint solution. Sold in pairs, these 0.1875″ thick laser cut steel brackets (packaged with a set of four shaft collars) allow gym owners to install a customized, wall-mounted medball storage rack in virtually any size training space.

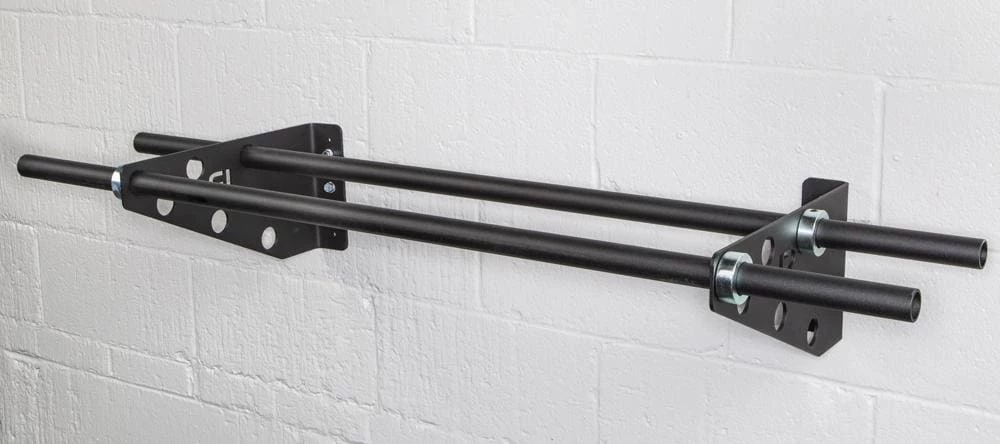

This version of the Swiss Brackets is designed for mounting directly to a wall in your gym. If you’d prefer to install the brackets using Rogue’s wall-mount accessory The Strip™, see the Strip-Mounted Swiss Bracket page instead.

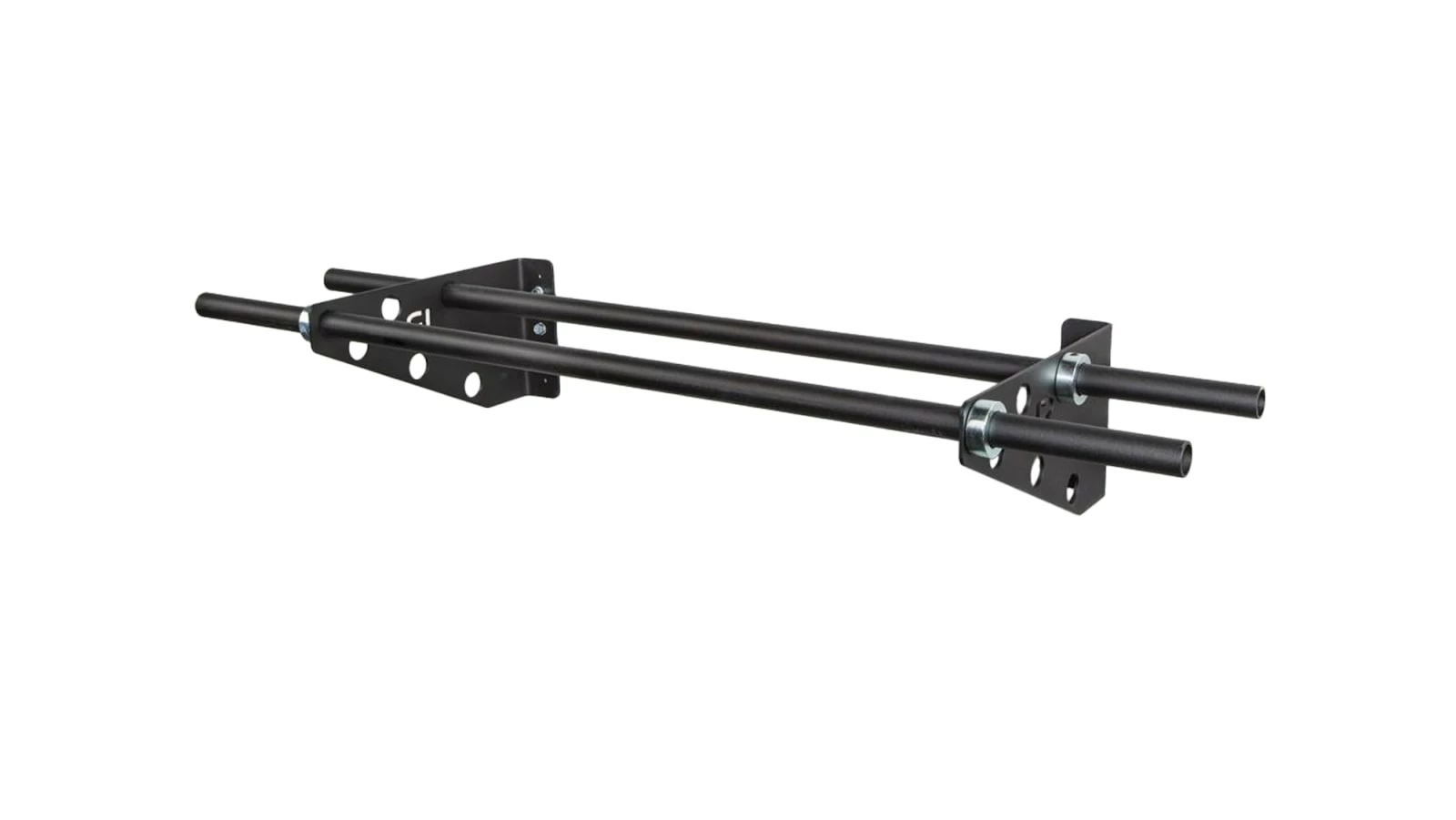

Set-Up: For secure installation, each bracket features a flange with three mounting holes—0.5625″ in diameter and spaced 2″ on center (hardware is not included). To complete the shelves, customers can opt to have a pair of 52″ long pipes included in their order, or—if you prefer a custom length—you can purchase any length of 1″ Schedule 40 pipe at your local hardware store and run them through the brackets.

Expansion Options: For growing gyms that may need more medicine ball storage space in the future, Swiss Bracket units are easy to expand, either by adding more brackets or by spacing the current brackets further out and swapping out longer pipes. You can also install a Strip-Mounted set of Swiss Brackets right next to a Wall-Mounted set, as the two versions are equidistant from the wall, creating a seamless look.
